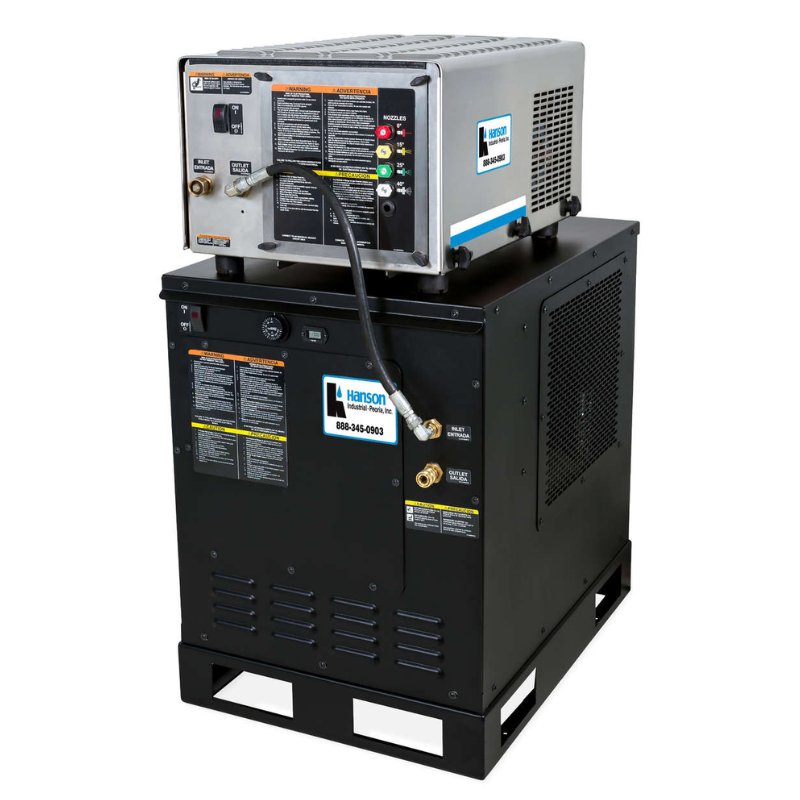

DHA Series Stationary All-Electric Hot Water

Stationary All-Electric | DHA Series

Belt-Drive Hot Water Pressure Washer
Engineered for facilities that demand consistent, efficient hot water on demand, the DHA Series features a patented cartridge heat exchanger design with stainless-steel coils in aluminum casings — delivering 120°F to 130°F temperature rise above intake water within 3 to 5 minutes. Running on 480V three-phase power with no burner fuel required, the DHA Series is the clean, low-maintenance solution for permanent industrial installations.

Price reflects base model only. All units are built to order and quoted based on application.

Key Features

• Up to 3000 PSI and 3.9 GPM output
• Belt-drive triplex piston pump with ceramic plungers
• Factory preset unloader for consistent system pressure
• Open drip-proof electric motor with manual thermal overload protection — 480V, 3-phase
• Patented cartridge heat exchanger design — stainless-steel coils in aluminum casings for maximum efficiency
• 120°F to 130°F temperature rise above intake water, reached within 3 to 5 minutes
• Adjustable thermostat for precise output temperature control
• On/Off power switch
• Time delay shutdown
• Stainless-steel base and frame with rubber isolators for vibration dampening
• Powder-coated steel heat exchanger frame
• Eliminates constant cleaning and heat loss associated with conventional coil designs
• No burner fuel required — all-electric operation for clean, indoor-friendly use
• Optional remote control box — mounts away from unit to control on/off, hot water heater, and cold water pump
• Optional auto start/stop — unit shuts off when trigger is released, restarts when trigger is pulled
• Dimensions: 36"L x 25"W x 49"H
• External downstream detergent injector with detergent nozzle
• Quick-connect nozzles: 0°, 15°, 25°, and 40°
• 50-foot x ⅜-inch wire-braided high-pressure hose with quick connects
• Adjustable pressure insulated dual lance with trigger gun
• Made in the USA with globally sourced components

Why Choose the DHA Series?

• All-electric operation means no burner fuel, no exhaust, and no combustion — ideal for enclosed or food-safe facilities
• Patented heat exchanger cartridge design delivers consistent hot water output with minimal maintenance and heat loss
• Stainless-steel coils in aluminum casings provide superior efficiency and corrosion resistance over conventional pipe coil designs
• Hot water on demand in 3 to 5 minutes — no extended warm-up time required
• Optional remote box allows operators to control the unit from a distance, improving workflow in large facilities
• Optional auto start/stop reduces energy consumption and extends equipment life between cleaning cycles
• Compact stationary footprint designed for permanent installation in wash bays, food processing, and manufacturing environments
• Dealer-exclusive product backed by Mi-T-M's proven industrial engineering
• Made in the USA with globally sourced components

Warranty & Certification

• 1-year electric motor warranty
• ETL Certified – US and Canada
• Made in the USA — Dealer Exclusive Product
