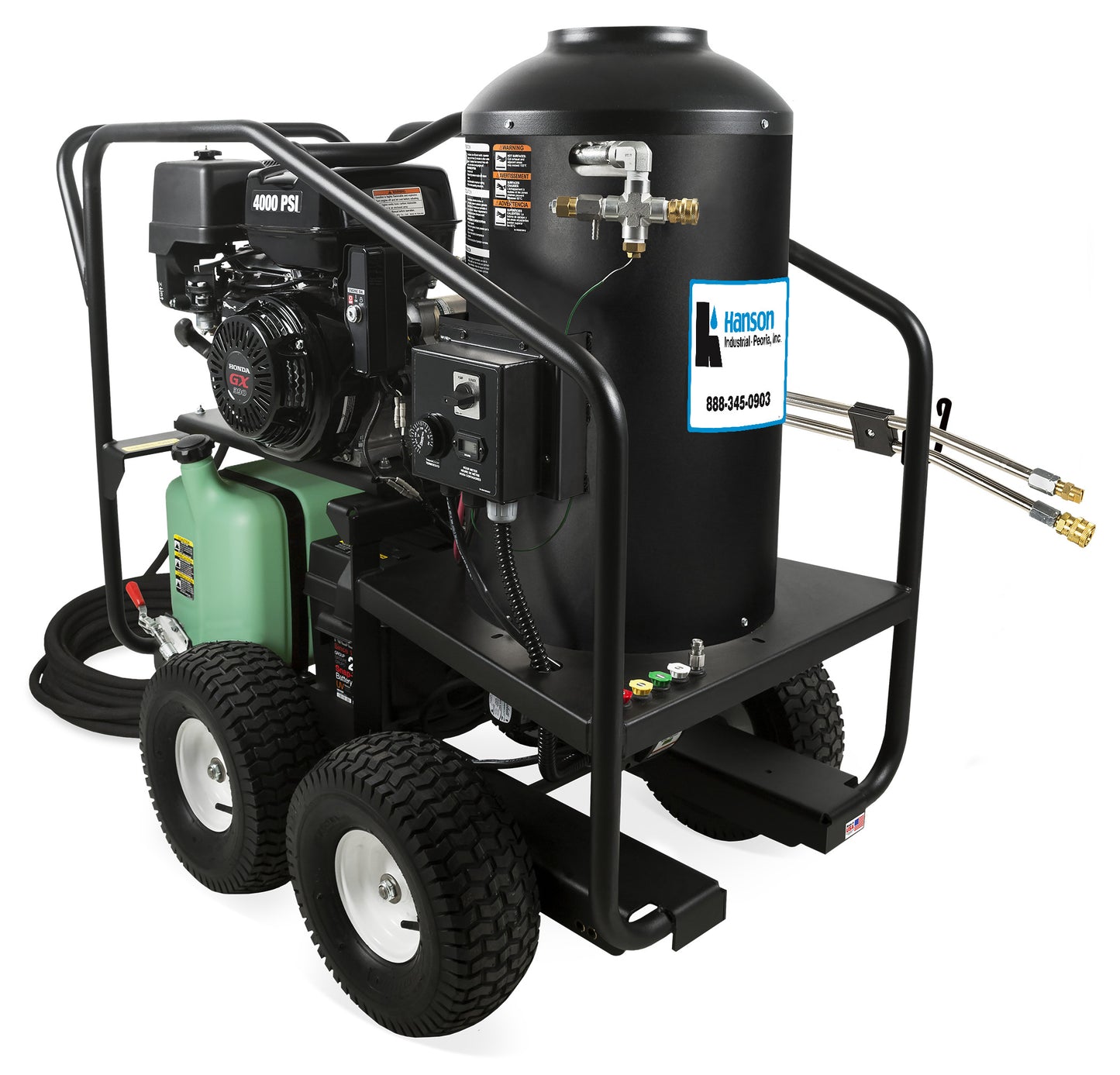

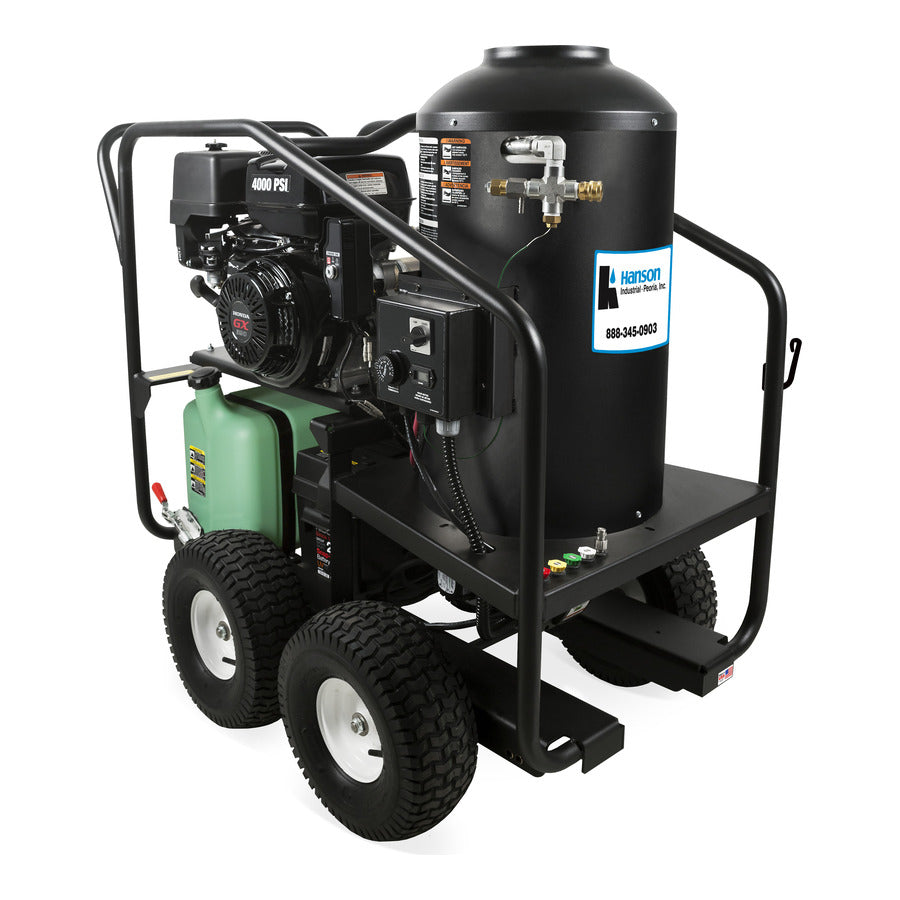

DHG Series Portable Gasoline Hot Water

Portable Gas-Powered | DHG Series

Direct/Belt-Drive Hot Water Pressure Washer
Featuring a 12V Beckett burner and a performance-proven gasoline engine, the DHG Series delivers 4000 PSI and 3.7 GPM of hot water cleaning power to cut through the toughest grease and grime. Available in direct- or belt-drive configurations with Honda or Vanguard engine options to match your application.

Price reflects base model only. All units are built to order and quoted based on application.

Key Features

• 4000 PSI, 3.7 GPM output
• Direct or belt-drive triplex piston pump with ceramic plungers
• Factory preset unloader for consistent system pressure
• Performance-proven Honda GX390 or Vanguard engine with low-oil protection
• 12V electric start — battery not included
• 12V Beckett burner for reliable, efficient hot water production
• ½-inch schedule 80 pipe coil with 4-pancake bottom-fired heat exchanger
• Adjustable temperature control
• Hour meter for maintenance tracking
• Temperature rise: 130°F/54°C above ambient; water output reaches 250°F in "wet" steam mode
• Reinforced powder-coated steel frame with center-balanced lifting hook
• 15-inch pneumatic tires for mobility across job site terrain
• Quick-connect nozzles: 0°, 15°, 25°, and 40°
• ¼-inch MEG and ¼-inch MQC wet steam nozzle — 25°
• External downstream detergent injector with detergent nozzle
• 50-foot x ⅜-inch steel wire-braided high-pressure hose with quick connects
• Adjustable pressure insulated dual lance with trigger gun
• 10-gallon burner fuel tank; 1.52–1.61 gallon engine fuel tank (model dependent)
• Burner fuel consumption: 2.14 gph; 299,600 BTU/hr output
• Dimensions: 49.5"L x 30"W x 48"H
• Optional stainless-steel coil wrap and skid feet available (must be ordered with unit)
• Made in the USA with globally sourced components

Why Choose the DHG Series?

• High-output 4000 PSI hot water performance purpose-built for heavy industrial and contractor use
• 12V Beckett burner delivers proven reliability and efficient fuel consumption in demanding environments
• Choice of direct- or belt-drive pump and Honda or Vanguard engine for application-specific configuration
• Wet steam capability at 250°F for superior degreasing and sanitation performance
• Center-balanced lifting hook and pneumatic tires make repositioning fast and safe on the job site
• Dealer-exclusive product with accessory and option support including hose reels and equipment covers
• Made in the USA with globally sourced components

Warranty & Certification

• 3-year engine warranty
• Made in the USA — Dealer Exclusive Product
