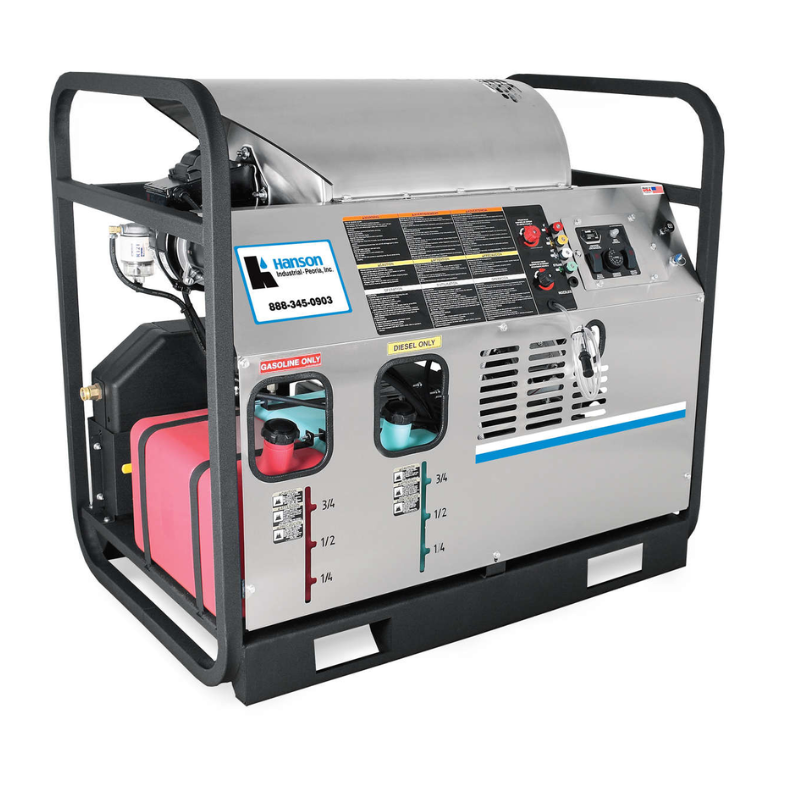

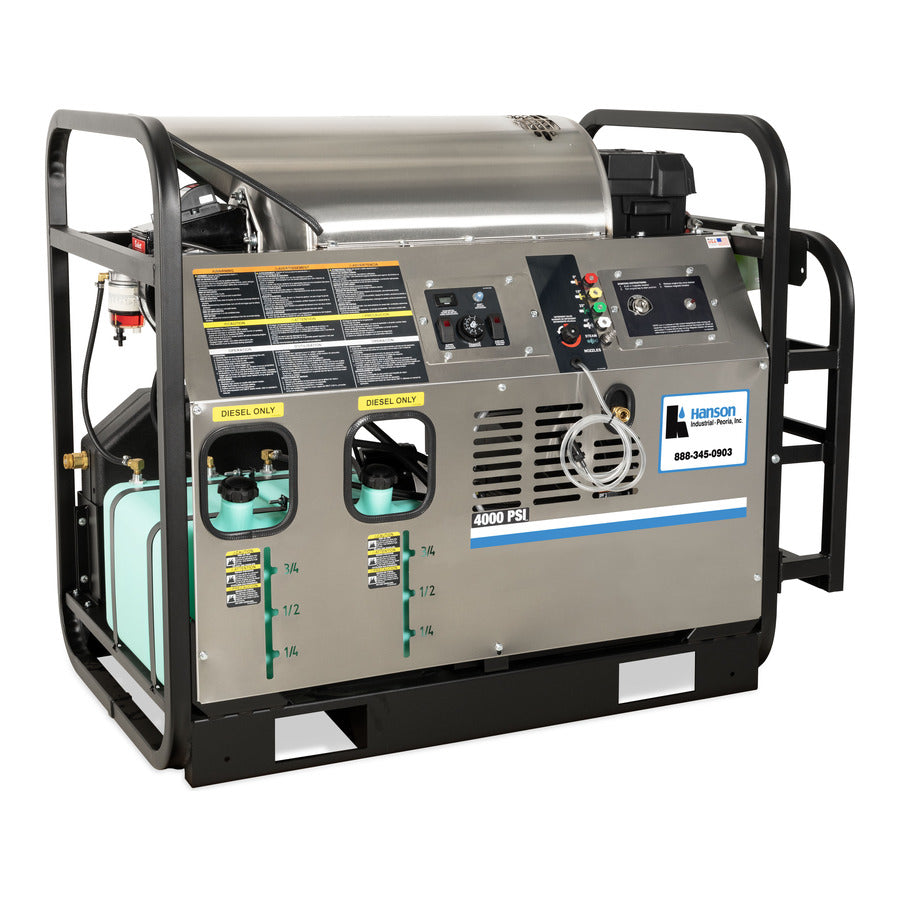

HDS Series Gasoline or Diesel Skid Hot Water

Skid Gasoline/Diesel | HDS Series

Belt-Drive Hot Water Pressure Washer
Built for unmatched reliability and power in the most demanding environments, the HDS Series features a wraparound frame with stainless-steel panels and delivers up to 4000 PSI and 7.8 GPM. With a built-in generator, auxiliary GFCI outlet, standard hour meter, and adjustable thermostat, the HDS Series is the most feature-complete unit in the lineup — engineered for construction, fleet maintenance, and heavy industrial cleaning applications.

Price reflects base model only. All units are built to order and quoted based on application.

Key Features

• Up to 4000 PSI and 7.8 GPM output (model dependent)
• Belt-drive triplex piston pump with ceramic plungers
• Factory preset unloader for consistent system pressure
• Performance-proven Honda, Vanguard, Kohler, or Kubota engine with electric start — battery not included
• No. 1 or No. 2 diesel or kerosene-fired burner (not approved for bio-fuel)
• Horizontal schedule 80 pipe coil
• Built-in 2900-watt generator
• 120V/15-amp auxiliary GFCI outlet
• Three-way ball valve for inlet selection (garden hose, float tank, or supply tank)
• Hour meter — standard on all models
• Adjustable thermostat — standard on all models
• Adjustable high pressure detergent injector
• Detergent and steam valves
• Temperature rise: 150°F/66°C above ambient; maximum outlet temperature 200°F
• Optional 300°F steam upgrade — lowers unit to 350 PSI with 240°F rise above ambient (must be ordered with unit)
• Heavy-duty powder-coated steel skid frame with stainless-steel coil wrap, control panel, and removable front panel
• Optional dual gun capability for two-operator simultaneous use (select models)
• Optional clutch drive pump to extend pump life by preventing bypass spin
• Optional four-point crane lifting capability and skid mounting brackets for trailer installation
• Polyethylene engine and burner fuel tanks — 10.0 gallons each
• Burner fuel consumption: 3.37–3.67 gph; up to 513,800 BTU/hr output (model dependent)
• Quick-connect nozzles: 0°, 15°, 25°, 40°, wet steam nozzle, and fixed detergent nozzle
• 50-foot x ⅜-inch steel wire-braided high-pressure hose with quick connects (½-inch on HDS-3008 models)
• Adjustable pressure insulated dual lance with trigger gun
• Made in the USA with globally sourced components

Why Choose the HDS Series?

• The most feature-complete skid unit in the lineup — hour meter, thermostat, GFCI outlet, and three-way ball valve all standard
• Stainless-steel wraparound frame, coil wrap, and control panel built for harsh construction and industrial environments
• 300°F steam upgrade option delivers the highest outlet temperature in the lineup for extreme degreasing applications
• Built-in 2900-watt generator and 120V GFCI outlet provide on-site power without a separate generator
• Trailer- and truck-mount ready with skid mounting brackets for maximum field mobility
• High-flow models up to 7.8 GPM for fleet washing, fire apparatus maintenance, and large-scale industrial washdown
• Optional dual gun operation for two-operator productivity on high-volume cleaning jobs
• Dealer-exclusive product backed by Mi-T-M's proven industrial engineering
• Made in the USA with globally sourced components

Warranty & Certification

• 3-year engine warranty
• CSA Certified – US and Canada
• Made in the USA — Dealer Exclusive Product
