Click here to see the complete specs for this item.

Price reflects the base model with no options. Contact us for a custom build.

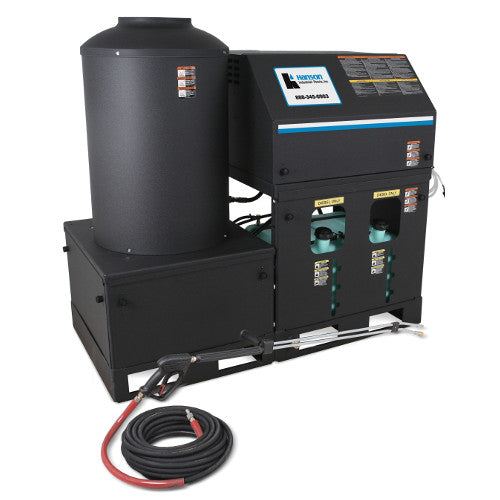

If you are looking for a wash bay system this is the equipment for you. This efficient hot water pressure washer is set up as a stationary unit with removable side panels for easy maintenance.

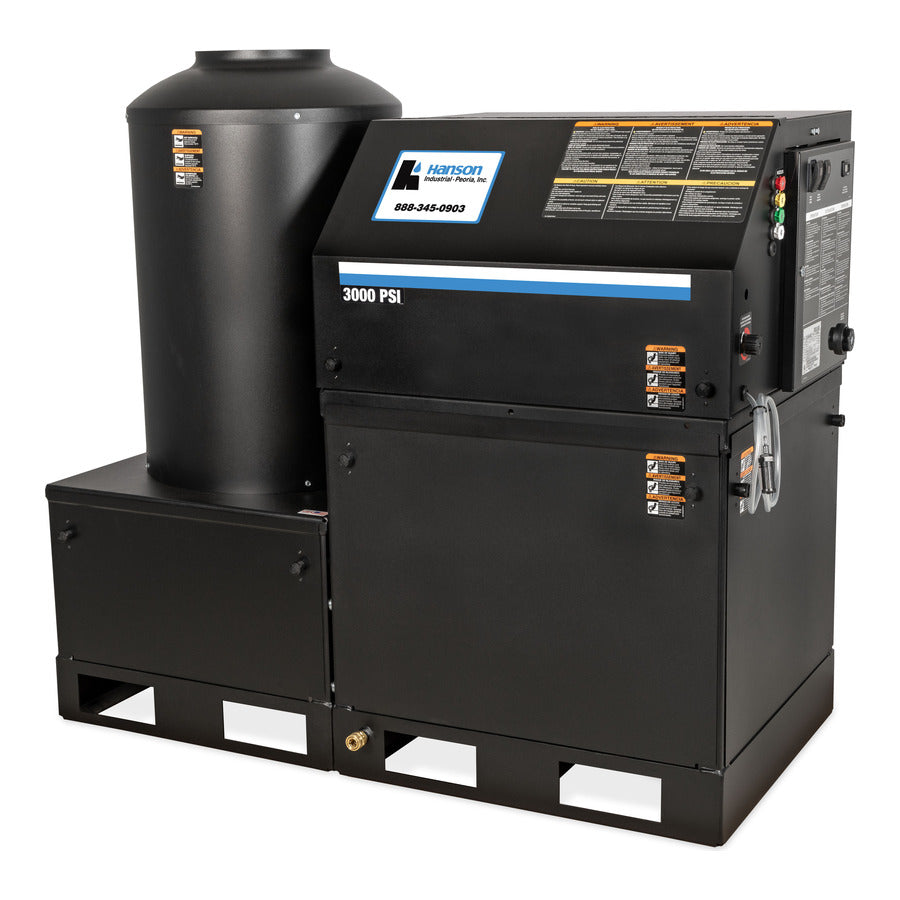

Electric Powered Oil-Heated Belt Drive

Pump

• Belt drive triplex piston General pump with ceramic plungers
• Thermal relief valve
• Adjustable high-pressure detergent injector

Motor

• Open drip-proof electric motor with manual thermal overload protection

Frame

• Powder-coated steel frame and removable side panels

Components

• 1 ⁄2-inch schedule 80-coil with 5-pancake heat exchanger
• 10-inch draft diverter
• On/Off burner, pump and motor switches
• Pressure switch and over-pressure safety controls
• 24V control system
• Polyethylene float tank (4-gallon with in-line screen filter)
• Adjustable thermostat

Miscellaneous

• Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
• Designed to run off an existing fuel tank (Optional fuel tanks available)

Unit Includes

• Quick connect nozzles - 0°, 15°, 25° and 40°
• 50-foot x 3 ⁄8-inch steel wire-braided high-pressure hose
• Adjustable pressure insulated dual lance with fixed detergent nozzle
• Professional-grade insulated trigger gun with safety lock-off
