HHB Series Electric Belt Drive Hot Water

Portable Electric Hot Water Pressure Washer | HHB Series

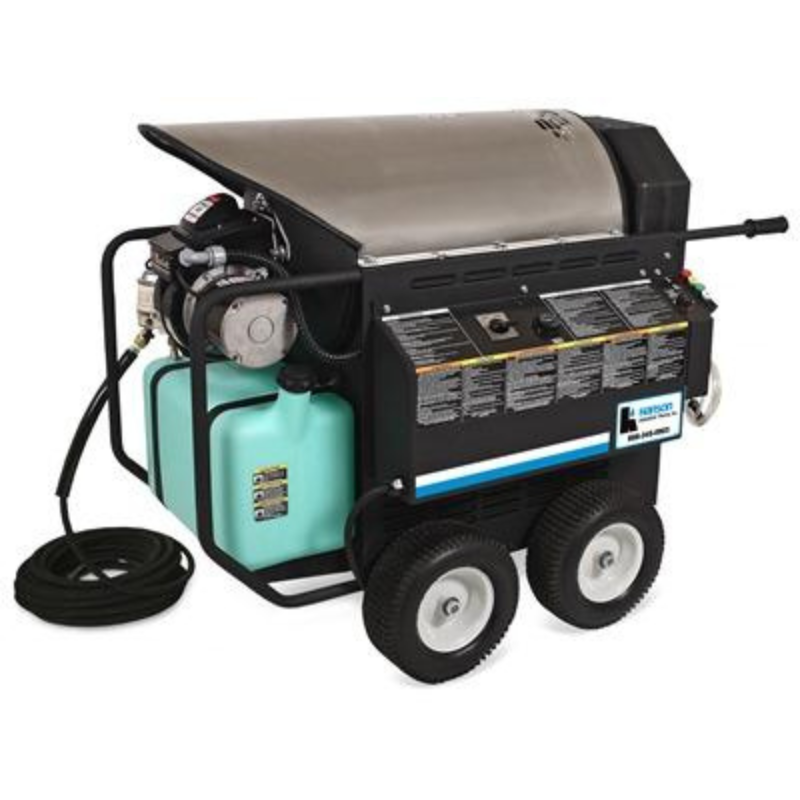

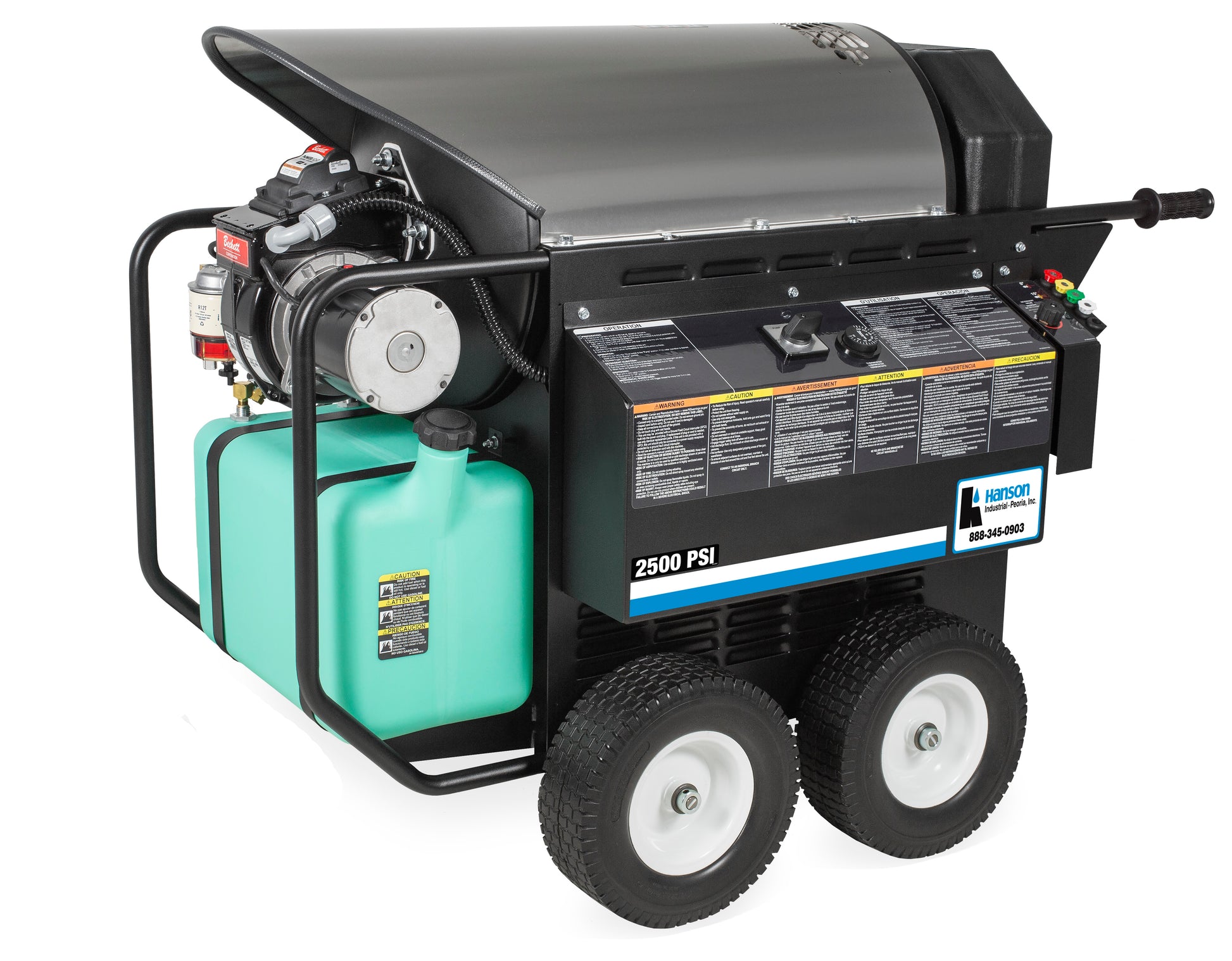

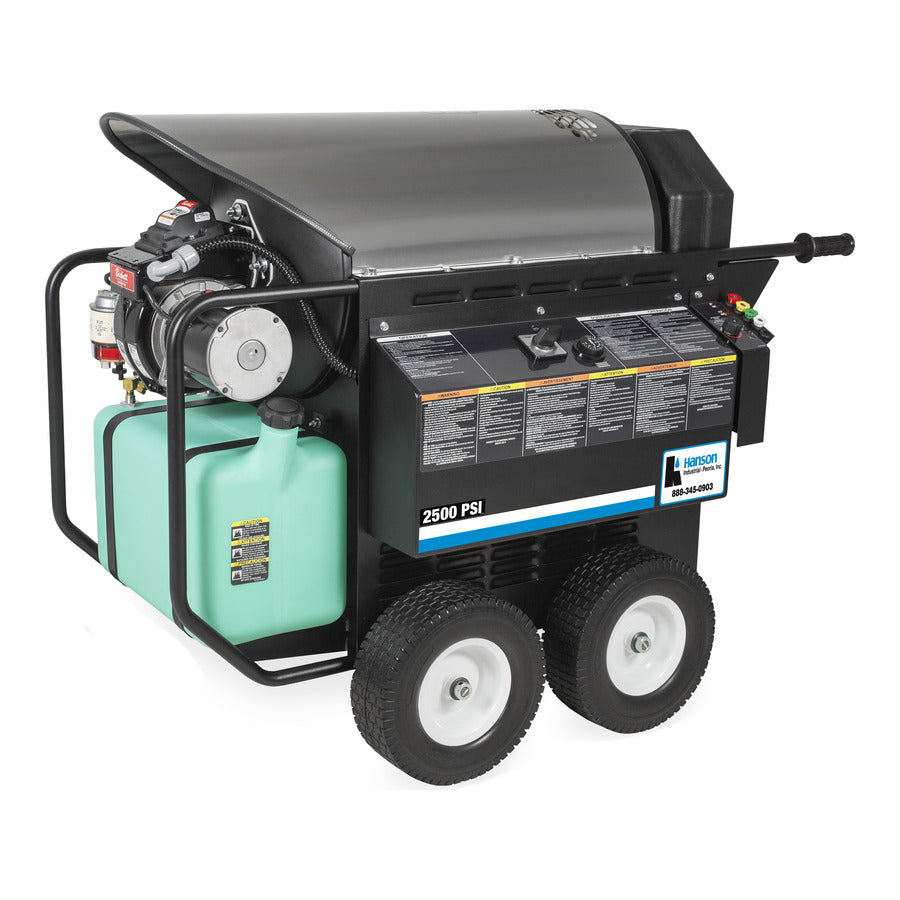

Belt-drive electric hot water pressure washer for shops, fleets, and maintenance facilities. The HHB Series pairs an open drip-proof electric motor with an oil-fired burner, delivering a 150°F temperature rise above ambient to cut grease and baked-on grime that cold water leaves behind. Five models span 300 to 2500 PSI, so the series covers everything from light steam work to heavy shop duty on a single frame size.

Pricing available upon request. This product is manufactured to order. Freight is quoted with your order.

Applications

• Degreasing engines, drivetrains, and heavy equipment
• Fleet and truck washing
• Shop floors, bays, and concrete
• Agricultural equipment and implements
• Food-processing and commercial kitchen cleanup
• General industrial maintenance

Key Features

• Belt-drive triplex pump with ceramic plungers — the belt turns the pump below motor speed, so it runs cooler and with less vibration than a direct-drive. That's what keeps the pump alive under daily use.
• Schedule 80 coil with stainless-steel wrap — heavy-wall pipe takes repeated heat cycling without failing at the welds, and the stainless wrap resists burnout around the burner.
• Racor fuel filter and water separator — pulls water out of the fuel before it reaches the burner. Water in stored diesel is the most common cause of burner failure in the field.
• Electric motor instead of a gas engine — no engine exhaust and far less noise, which makes it workable in bays where a gas unit isn't.
• Adjustable thermostat and detergent injector — dial the outlet temperature to the job and meter chemical at the gun instead of pre-mixing.
• Powder-coated frame on 13-inch flat-free tires — one person rolls it across gravel and broken concrete, and there's no tire to air up on a cold morning.

Why Choose the HHB Series

• Heat where it counts: 150°F rise above ambient, 200°F maximum outlet — enough to release grease that cold water only pushes around.
• Built to be serviced: belt drive, standard AR pump, and accessible components mean it gets repaired locally rather than replaced.
• Five models, one footprint: every unit shares the same 57 × 30 × 41.5 in. frame, so specifying up in pressure doesn't change where it parks.
• Dealer-exclusive build: not a big-box unit — sold, supported, and serviced through Hanson Industrial-Peoria.

Specifications

• Pressure range: 300–2500 PSI (five models)
• Flow range: 1.8–2.8 GPM
• Power: 115V or 230V single phase, 1.5–6.0 HP
• Temperature rise: 150°F / 66°C above ambient, 200°F maximum outlet
• Dimensions (L×W×H): 57 × 30 × 41.5 in. · Net weight 460–540 lb.

See the spec sheet below for the full model-by-model comparison, including plug types, burner output, fuel consumption, included accessories, and shipping weights.

Warranty and Certification

• 1-year limited warranty on the electric motor
• ETL Certified — US and Canada
• Made in the USA with globally sourced components
