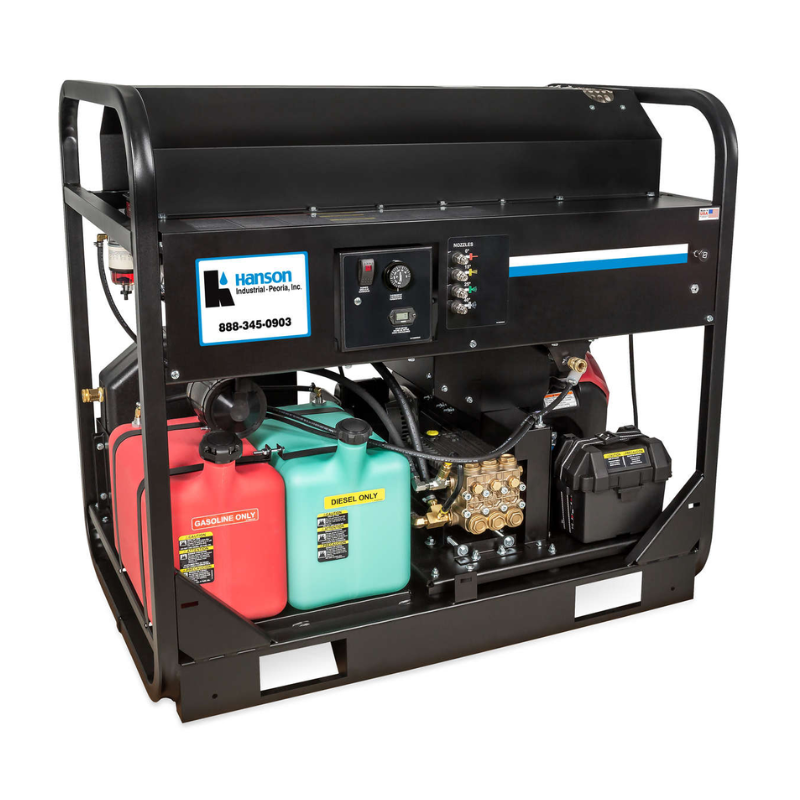

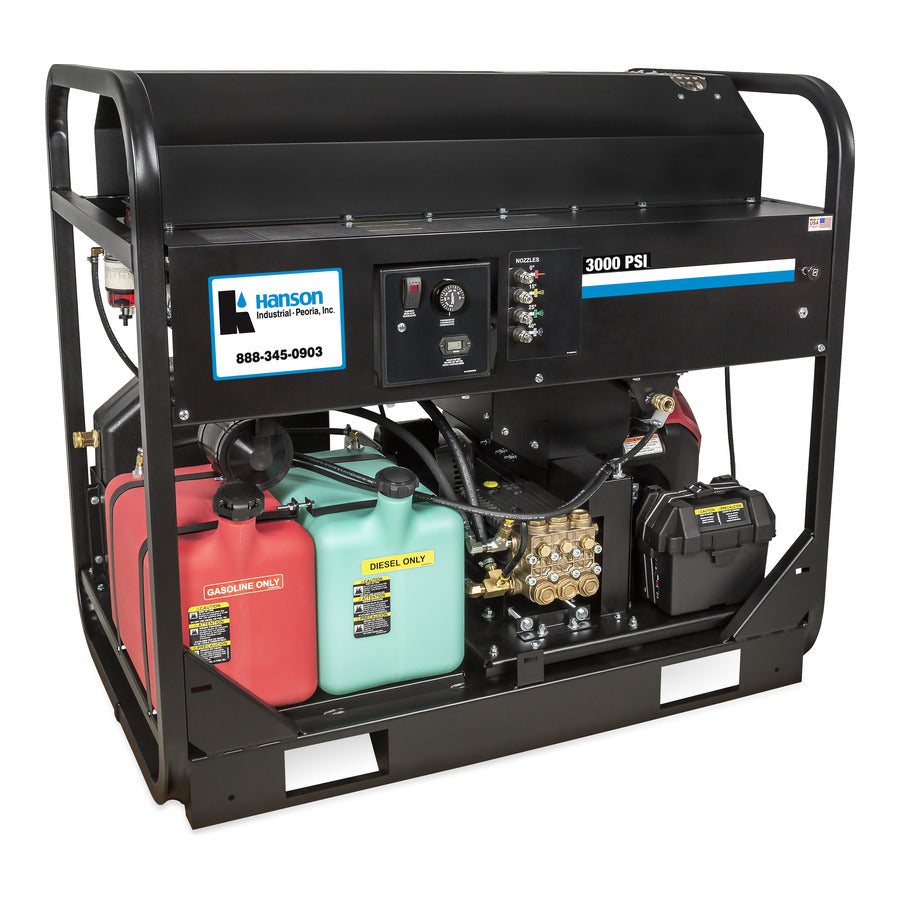

HVS Series Gasoline or Diesel Hot Water

Skid Gasoline/Diesel | HVS Series

Belt-Drive Hot Water Pressure Washer
Mount these heavy-duty units to a trailer or the back of a truck and take serious cleaning power anywhere the job demands. The HVS Series delivers up to 4000 PSI and 7.8 GPM with a robust belt-drive system, built-in 2900-watt generator, and a wide range of gasoline and diesel engine options — engineered to cut through grease, oil, and industrial grime with ease.

Price reflects base model only. All units are built to order and quoted based on application.

Key Features

• Up to 4000 PSI and 7.8 GPM output (model dependent)
• Belt-drive triplex piston pump with ceramic plungers
• Factory preset unloader for consistent system pressure
• Heavy-duty dual cogged belt drive system for extended drive train life
• Performance-proven Honda, Vanguard, Kohler, or Kubota engine with electric start — battery not included
• No. 1 or No. 2 diesel or kerosene-fired burner (not approved for bio-fuel)
• Horizontal schedule 80 pipe coil
• Built-in 2900-watt generator
• High-quality fuel filter/water separator for clean fuel supply
• 80-mesh high-volume stainless-steel screen inlet water strainer
• Pressure relief valve protects against excessive system pressure
• Polyethylene burner and engine fuel tanks — 10.0 gallons each
• Temperature rise: 150°F/66°C above ambient; maximum outlet temperature 200°F
• Optional adjustable thermostat — outlet adjustable from 86°F to 248°F (must be ordered with unit)
• Optional steam combination upgrade to 250°F outlet temperature (must be ordered with unit)
• Optional dual gun capability for two-operator simultaneous use (select models)
• Optional clutch drive pump to extend pump life by preventing bypass spin
• Heavy-duty powder-coated steel skid frame
• Skid mounting brackets available for trailer or truck installation
• Optional wheel kit, four-point crane lifting capability, and hour meter available
• Quick-connect nozzles: 0°, 15°, 25°, 40°, and fixed detergent nozzle
• 50-foot x ⅜-inch steel wire-braided high-pressure hose with quick connects
• Adjustable pressure insulated dual lance with trigger gun
• Made in the USA with globally sourced components

Why Choose the HVS Series?

• Trailer- and truck-mount ready for maximum job site mobility and versatility
• Built-in 2900-watt generator eliminates the need for an external power source in the field
• High-flow models up to 7.8 GPM for large-scale fleet cleaning, equipment washdown, and industrial applications
• Dual cogged belt drive system delivers superior power transfer and longer drive train service life
• Optional dual gun operation allows two operators to work simultaneously off a single unit
• Optional steam output at 250°F for maximum degreasing and sanitation performance
• Broadest engine selection available — Honda, Vanguard, Kohler, and Kubota gasoline and diesel options
• Dealer-exclusive product backed by Mi-T-M's proven industrial engineering
• Made in the USA with globally sourced components

Warranty & Certification

• 3-year engine warranty
• CSA Certified – US and Canada
• Made in the USA — Dealer Exclusive Product
